Honda Navi AC to DC Conversion Kit: Plug-and-Play LED Headlight Guide
Share
If you're upgrading the factory headlight on your Honda Navi to LED, a Honda Navi AC to DC conversion kit may be one of the most important parts of the installation.
The Honda Navi headlight circuit can supply AC power to the factory headlight. While that works with the original halogen setup, many LED headlight bulbs are designed to operate on stable DC power. Without the proper conversion, riders may experience flickering, inconsistent brightness, dimming at idle, or an LED that does not operate correctly.

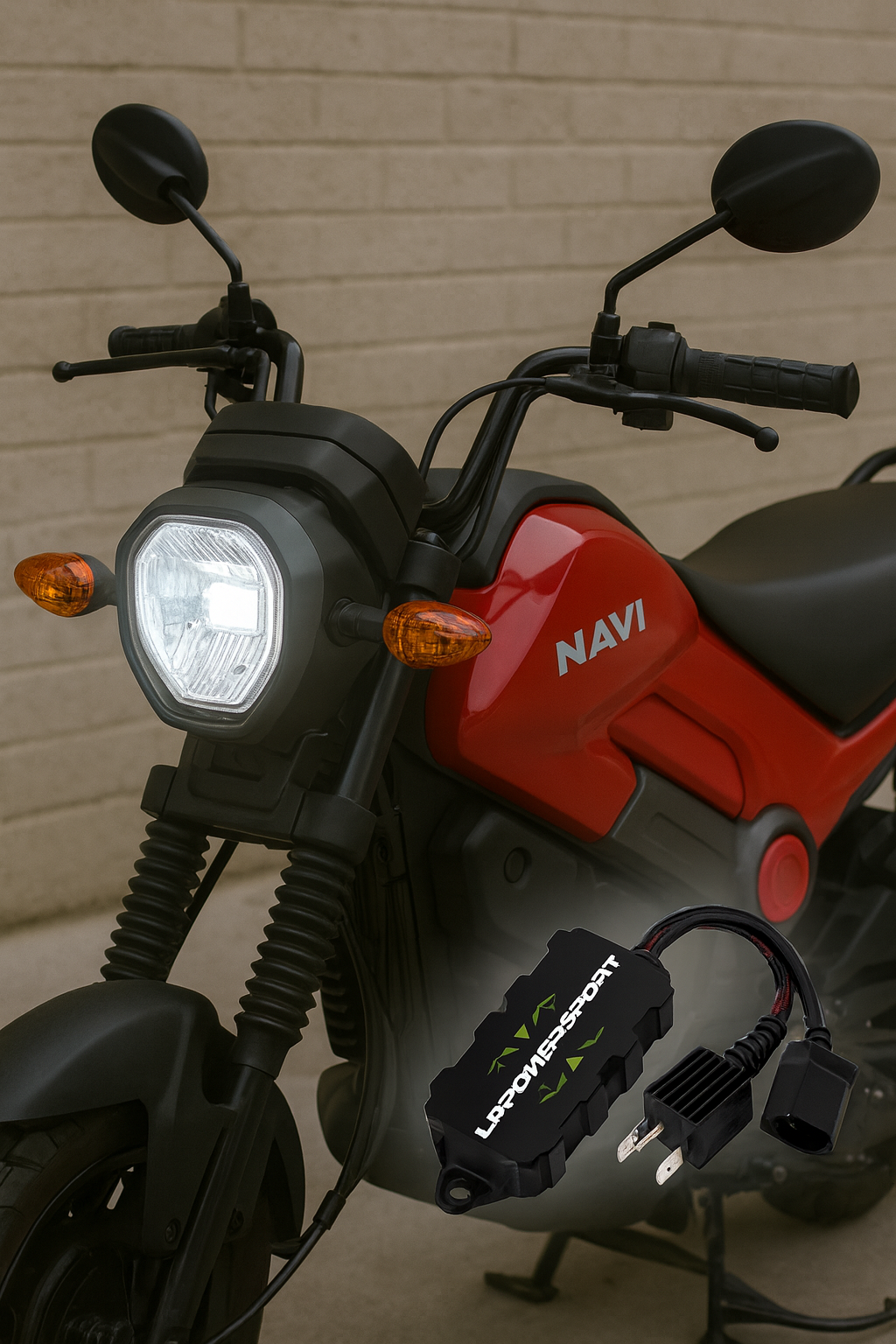

At LEDPowersport®, we use a simple plug-and-play solution: an inline H4 AC to DC rectifier that connects between the Honda Navi's factory headlight connector and the LED bulb. No cutting, soldering, or rewiring of the factory harness is required.
This guide explains how the Honda Navi AC to DC conversion works, why an LED headlight may need a rectifier, how the plug-and-play installation is performed, and what to check if your Navi LED headlight is flickering.
What Is a Honda Navi AC to DC Conversion Kit?
A Honda Navi AC to DC conversion kit converts the electrical power supplied to the headlight into DC power that is suitable for a compatible LED headlight.
For this application, the conversion can be done using a compact inline rectifier rather than converting the entire motorcycle electrical system.
The rectifier installs directly in the headlight circuit:
Honda Navi factory H4 connector → AC to DC rectifier → LED headlight bulb
This allows riders to upgrade the headlight without permanently modifying the Navi's factory wiring.
Why Does the Honda Navi Need AC to DC Conversion for an LED Headlight?
Traditional halogen headlight bulbs are much more tolerant of the type of alternating electrical supply used in many small motorcycles, scooters, ATVs, and powersports machines.
LED lighting is different. Most LED headlight systems are designed around DC input and contain electronic drivers that regulate power to the LED chips.
If an LED designed for DC operation is connected directly to an AC headlight circuit, you may notice symptoms such as:
- LED headlight flickering
- Brightness changing with engine RPM
- Dimming or unstable output at idle
- The LED failing to illuminate correctly
- Unstable operation from the LED driver
An inline rectifier converts the headlight circuit's AC output into DC before the power reaches the LED bulb.
Honda Navi LED Headlight Flickering: What Causes It?
One of the most common symptoms riders notice after installing an LED bulb in an AC-powered headlight circuit is flickering.
The LED itself reacts to changes in electrical input much faster than a traditional halogen filament. Because of that, electrical fluctuations that were not obvious with the original bulb can become very noticeable after an LED conversion.
If your Honda Navi LED headlight:
- flickers while the engine is running,
- changes brightness when you rev the engine,
- is weak at idle, or
- does not operate correctly after an LED bulb installation,
the headlight's electrical supply is one of the first things to check.
Using the proper Honda Navi H4 AC to DC rectifier provides the LED with a DC output instead of feeding the LED directly from the AC headlight circuit.
Honda Navi AC to DC Conversion Without Rewiring
You do not need to convert the Navi's entire electrical system to DC just to install a compatible LED headlight.
For the headlight, the conversion can be performed inline with a plug-and-play rectifier.
That means there is:
- No cutting of the factory wiring harness
- No soldering
- No permanent wiring modification
- No separate battery-fed headlight circuit required
The factory connector remains intact, making this a much cleaner solution for riders who want to upgrade their Honda Navi lighting without performing a larger electrical modification.
How to Install a Honda Navi H4 AC to DC Rectifier
The basic plug-and-play installation is straightforward.
- Access the factory Honda Navi headlight connector.
- Disconnect the factory H4-style headlight plug.
- Connect the AC input side of the rectifier to the factory headlight connector.
- Connect the LED headlight to the output side of the rectifier.
- Install the LED bulb correctly in the headlight housing.
- Secure the rectifier and wiring away from heat, sharp edges, and moving components.
- Start the Navi and verify low beam and high beam operation before reassembling everything.
Always verify connector orientation and make sure all connections are fully seated before operating the motorcycle.
Recommended Honda Navi AC to DC Rectifier
For a plug-and-play Honda Navi LED conversion, LEDPowersport® offers an H4-style inline AC to DC rectifier designed for powersports LED applications.
👉 LEDPowersport® Single AC to DC Rectifier for H4-Style Connectors – H4X
The H4X rectifier is designed to install between the machine's H4-style headlight connector and a compatible LED headlight.
H4X Rectifier Features
- Inline plug-and-play installation
- Designed for H4-style headlight connectors
- Converts AC headlight power to DC for compatible LED applications
- No cutting or soldering of the factory headlight wiring
- Compact design for powersports applications
- Designed to work with compatible LEDPowersport® LED headlight systems
Do You Need a Rectifier With Every Honda Navi LED Headlight?
That depends on the electrical requirements of the LED being installed.
Some lighting products may include their own AC-compatible electronics, while many conventional LED headlight bulbs are intended to receive DC power.
If the LED you're installing requires DC input and the machine is supplying AC at the headlight connector, a rectifier is needed between the factory connector and the LED.
This is why simply installing an LED bulb that physically fits the H4 headlight socket does not necessarily mean the electrical system is compatible with that bulb.
Physical fitment and electrical compatibility are two separate things.
Does the Honda Navi Use an H4-Style Headlight Connector?
The plug-and-play conversion discussed in this guide uses an H4-style connection, allowing the rectifier to be installed inline between the factory headlight wiring and a compatible LED headlight setup.
Before ordering any electrical component, verify the connector and application on your specific Navi, particularly if the motorcycle has previously been modified.
Can You Convert Only the Honda Navi Headlight to DC?
Yes. For an LED headlight conversion, the goal is not necessarily to convert every electrical circuit on the motorcycle.
An inline rectifier can convert the power specifically at the headlight connection, giving a compatible LED headlight the DC input it needs while leaving the remainder of the factory electrical system unchanged.
For many riders, that is much simpler than performing a full motorcycle AC-to-DC electrical conversion.
Honda Navi LED Headlight Installation Tips
Once the electrical side of the conversion is correct, there are a few additional things worth checking during an LED installation.
- Make sure the LED bulb is fully seated in the housing.
- Verify that the high and low beam functions operate correctly.
- Route the rectifier and LED wiring so it cannot rub against sharp edges.
- Keep wiring away from hot or moving components.
- Secure excess wiring rather than allowing it to move freely behind the headlight.
- Check headlight aim after installation.
- Test the lighting at idle and at higher engine RPM before completing reassembly.
A properly installed LED conversion should provide consistent operation throughout the engine's normal RPM range.
Honda Navi AC to DC Conversion vs. Full Electrical Conversion
There is an important difference between installing an inline headlight rectifier and converting an entire motorcycle electrical system.
A Honda Navi headlight AC to DC conversion using an inline rectifier addresses the electrical supply going specifically to the LED headlight.
A full electrical-system conversion can involve additional wiring, charging-system modifications, battery connections, switches, and other changes that are unnecessary when the only goal is installing a compatible LED headlight.
For riders who simply want a brighter LED headlight, the plug-and-play inline approach is considerably less invasive.
Real Honda Navi Rider Experience
Honda Navi owners have also discussed LED headlight and rectifier installations within the Navi community.
🛠️ View the Honda Navi LED rectifier discussion on Reddit
Community experiences can be useful for seeing how other Navi owners approached their installations, but always make sure the electrical components you use are appropriate for your specific lighting setup.
Is a Honda Navi AC to DC Conversion Kit Worth It?
If you're installing a DC LED headlight on a Honda Navi that is supplying AC power to the headlight circuit, an inline rectifier is a simple way to address the electrical compatibility problem without permanently modifying the factory wiring.
For us, the biggest advantages are straightforward:
- Plug-and-play installation
- No cutting or soldering
- Stable DC output for a compatible LED
- Cleaner installation than a full wiring conversion
- Factory headlight wiring remains intact
For riders upgrading from the factory halogen headlight to LED, getting the electrical side of the conversion right is just as important as choosing the LED itself.
Shop the Honda Navi H4 AC to DC Rectifier
Ready to convert your Honda Navi headlight circuit for a compatible LED?
🔧 Shop the LEDPowersport® H4X AC to DC Rectifier
LEDPowersport® specializes in powersports LED lighting and electrical solutions for snowmobiles, ATVs, UTVs, motorcycles, and other powersports applications.
Honda Navi AC to DC Conversion FAQ
Does the Honda Navi need an AC to DC conversion kit for an LED headlight?
If the LED being installed requires DC power and the headlight circuit is supplying AC, an AC to DC rectifier is needed between the factory headlight connector and the LED.
Why does my Honda Navi LED headlight flicker?
Flickering can occur when a DC LED headlight is connected to an electrical supply that is not providing the stable DC input the LED driver expects. Electrical connections and the LED itself should also be checked when diagnosing flickering.
Can I convert my Honda Navi headlight from AC to DC without cutting wires?
Yes. A plug-and-play H4-style inline rectifier allows the headlight circuit to be converted for a compatible LED without cutting, splicing, or soldering the factory headlight harness.
Where does the Honda Navi rectifier plug in?
The inline rectifier connects between the factory H4-style headlight connector and the compatible LED headlight.
Do I have to convert the entire Honda Navi electrical system to DC?
No. If your goal is only to supply appropriate DC power to a compatible LED headlight, an inline headlight rectifier can perform the conversion at the headlight circuit without converting the entire motorcycle.
Does the rectifier eliminate LED headlight flickering?
When flickering is being caused by an AC electrical supply being used with a DC LED headlight, converting the headlight output to DC addresses that compatibility issue. Other wiring, connection, or component problems should still be ruled out if flickering remains.
Does the conversion require soldering?
Not with the plug-and-play H4X setup described here. The rectifier connects inline using compatible connectors.
Can I still use high and low beam?
A compatible H4 LED and rectifier setup is intended to retain the applicable H4 headlight functions. Verify both low and high beam operation after installation before reassembling the headlight.
Where can I buy a Honda Navi AC to DC rectifier?
You can view the LEDPowersport® H4X AC to DC Rectifier for compatible H4-style powersports applications.
