How to Check if Your Snowmobile Headlight Plug Is AC or DC Before Installing LED Headlights
If you're upgrading to snowmobile LED headlights, check whether your sled supplies AC or DC power at the headlight plug. Some snowmobiles—including many youth sleds and older models—may supply AC power. LEDPowersport® LED kits used on AC-powered headlight circuits require a compatible rectifier.
This guide explains how to test the headlight plug with a multimeter, based on the LEDPowersport® video below. Readings vary by sled and test conditions, so use your snowmobile’s service information when available.
Why AC vs. DC Matters for Snowmobile LED Headlights
LEDPowersport® LED kits require the correct power setup for the sled. If the headlight connector supplies AC power, install the compatible rectifier specified for your bulb style and application. An AC-to-DC rectifier converts the headlight power for the LED kit.
Using an LED kit on an AC circuit without the required rectifier can cause flickering or premature LED failure. Check your fitment and electrical requirements before installation.
Explore our High Power Series snowmobile LED kits.
What You Need
- A digital multimeter with AC-voltage and DC-voltage settings
- Access to your snowmobile’s headlight connector
- Your snowmobile and multimeter’s instructions
How to Test AC or DC at Your Snowmobile Headlight Plug
1. Locate the headlight connector

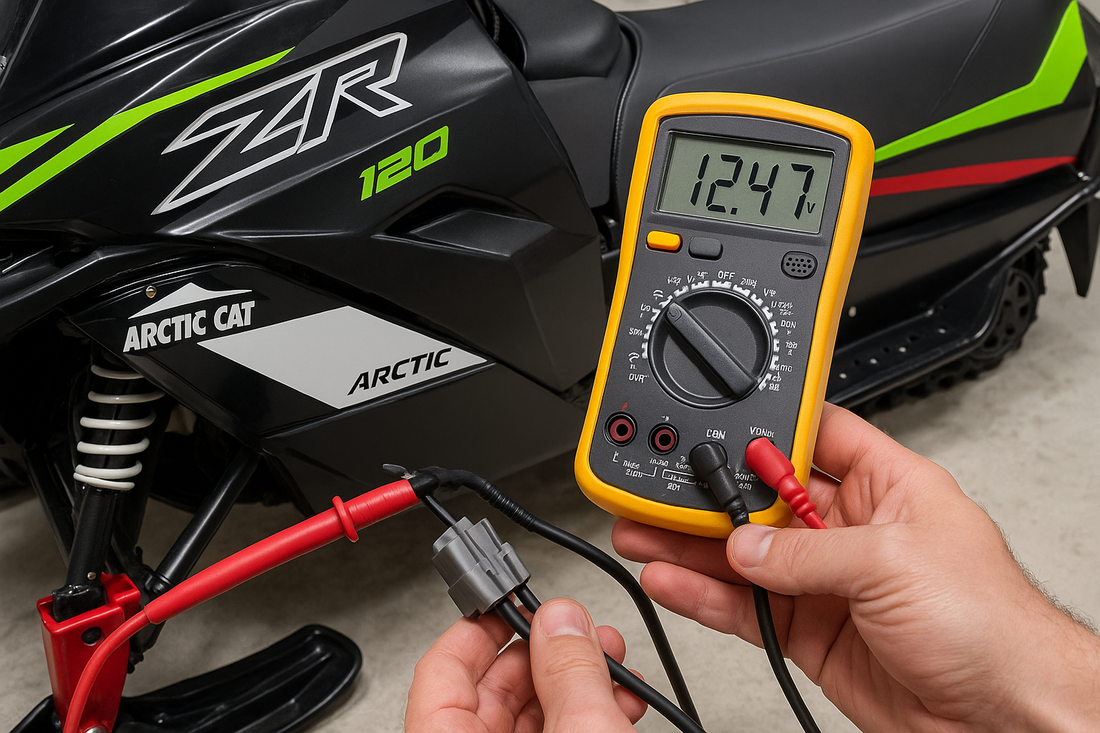

Open the hood and locate the headlight connector. The video demonstrates the test on a 2024 Arctic Cat ZR 120 with an H4-style plug.
2. Set up the multimeter
Connect the meter leads to the correct multimeter ports and select voltage measurement. Follow the meter and sled service instructions for safely accessing the connector. Avoid shorting the terminals together.
3. Measure AC voltage
Select AC volts (usually marked V~). With the sled running, measure across the two headlight power terminals using the method recommended for your connector and service information. Do not assume that either terminal is ground unless the wiring diagram confirms it.
4. Measure DC voltage
Switch the meter to DC volts (usually marked V⎓) and repeat the measurement at the same test points.
5. Compare the readings
A much stronger AC reading and little or no DC reading may indicate AC power at the headlight plug. Voltage can vary with the sled, engine speed, regulator, and test points. If the readings are unclear, check the service manual or have a qualified technician test the circuit.
Result shown in the video: The 2024 Arctic Cat ZR 120 measured approximately 12V AC and almost no DC under the test conditions shown. That indicates AC power at that sled’s headlight plug.
When You Need a Rectifier
If testing and the sled’s service information confirm AC power at the headlight plug, use the compatible rectifier required for your LED kit and connector type. Do not choose a rectifier by sled brand alone—verify the connector and fitment.
For an H4-style connector, see the LEDPowersport® H4 AC-to-DC rectifier pair. Other bulb styles may require a different rectifier.
For more information, read our snowmobile AC vs. DC power guide.
Shop LED Headlights for Your Snowmobile
- LEDPowersport® High Power Series snowmobile LED kits
- Snowmobile LED headlights and fitment information
- H4 AC-to-DC rectifier pair for compatible H4 applications
Confirm your sled’s bulb type and power requirements before ordering. If you need help checking fitment, contact LEDPowersport®.
Common Signs That May Point to AC Power
- Headlights flicker or pulse
- Measured voltage changes as engine speed changes
- LEDs flicker when installed without the required rectifier
These signs alone do not confirm AC power. Test the circuit or consult the sled’s service information before choosing a rectifier.
Conclusion
Testing the headlight connector can help you determine whether your snowmobile supplies AC or DC power. Readings differ between models, so verify the result and choose the LED kit and rectifier that match your specific sled.
